HYGT125X Suspended Heat-insulated Heat Insulation Sliding Window

Product Features

● HYGT125X suspended heat-insulated sliding window adopts simple and fashionable style, the most popular suspended linear track way, and are built with systematic thinking.

● The lower track adopts sinking stepped drainage + 3 stainless steel rails + double retaining edges, which are waterproof and drainage. The sinking stepped drainage design uses water pressure to drain water, which is smooth and beautiful in appearance. The lower track can be added with anti-handrail surface tube or lower track retaining edge.

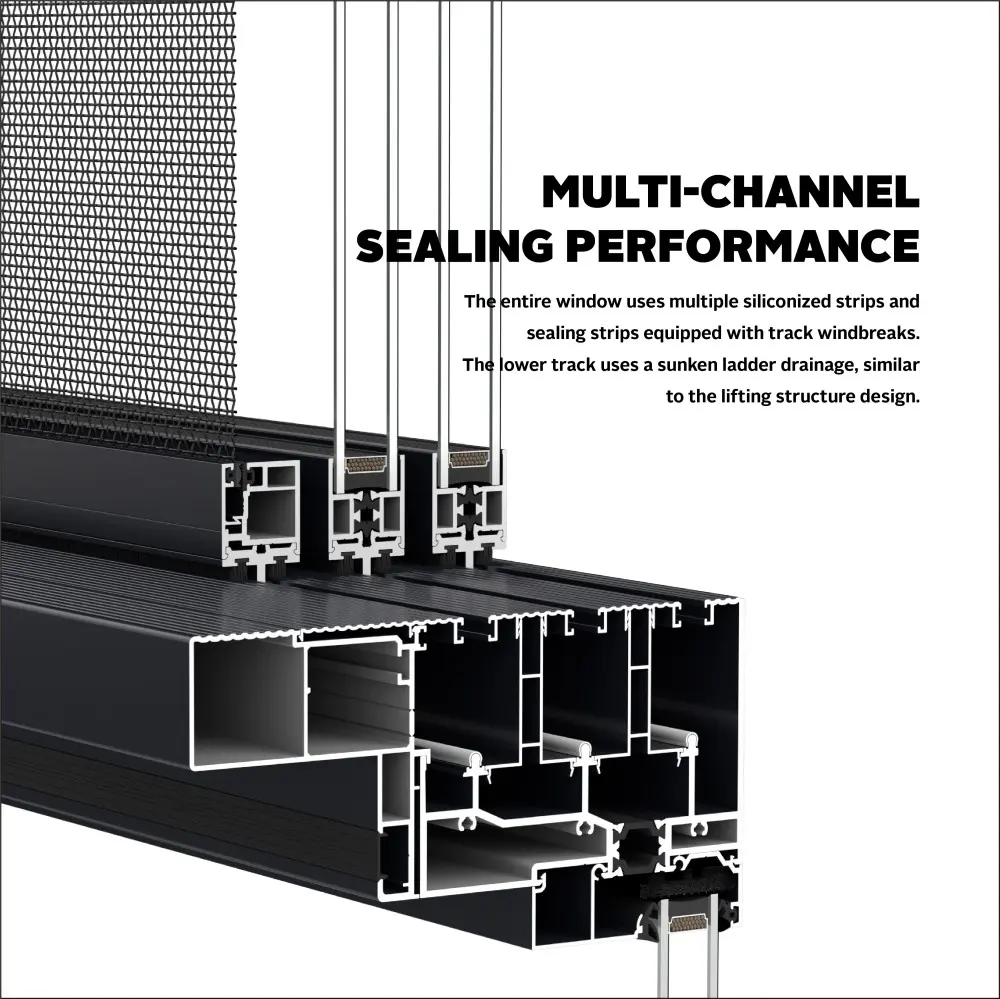

● The multi-layer siliconized strip design blocks strong winds layer by layer, and is insect-proof, dust-proof and waterproof.

● Adding windproof soft rubber sealing parts at the overlapping places of the upper and lower tracks corresponding to the indoor and outdoor sash hooks can increase the sealing performance of the sliding window.

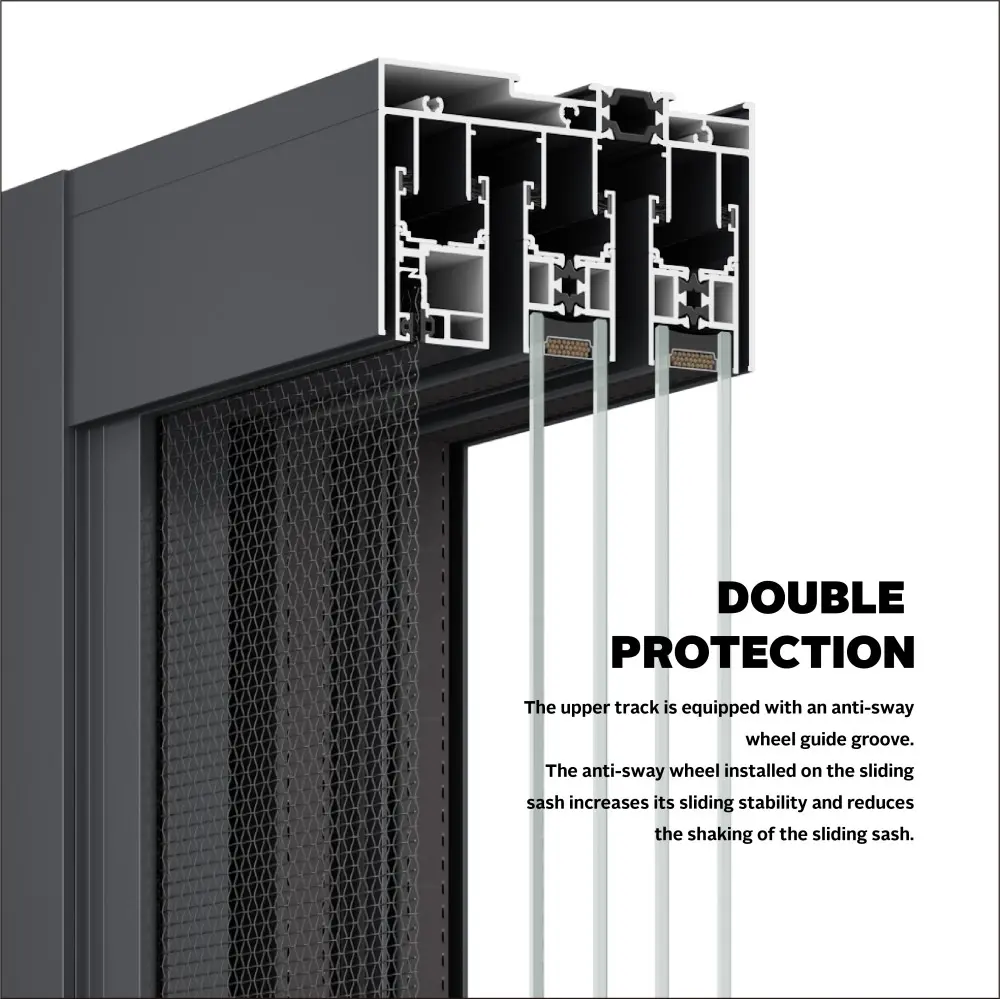

● The upper track is equipped with an anti-swing wheel guide groove. After the anti-swing wheel is installed on the sliding sash, its sliding stability is increased and the shaking of the sliding sash is reduced.

● This series adopts a small square pressure line structure design when fixing the upper and lower positions. The clothes drying rack is fixed at the bottom.

● Since this series has a three-track structure, its screen sash can be installed on the indoor side or the outdoor side, and all three sashes can be glass sashes.

● The glue-free strip process is adopted (EPDM is used inside the glass, and EPDM foam composite soft and hard co-extruded strips are used outside the glass, which greatly increases the extrusion volume of the glass outer strip).

Hardware system:

● 1.The HYGT125X suspended heat-insulated sliding window use customized side-mounted automatic locks and lock hooks, and the glass sash pulleys use 15mm wide x 20 (17) mm high single-row four wheels, single-row six wheels, single-row eight wheels, and single-row ten wheels.

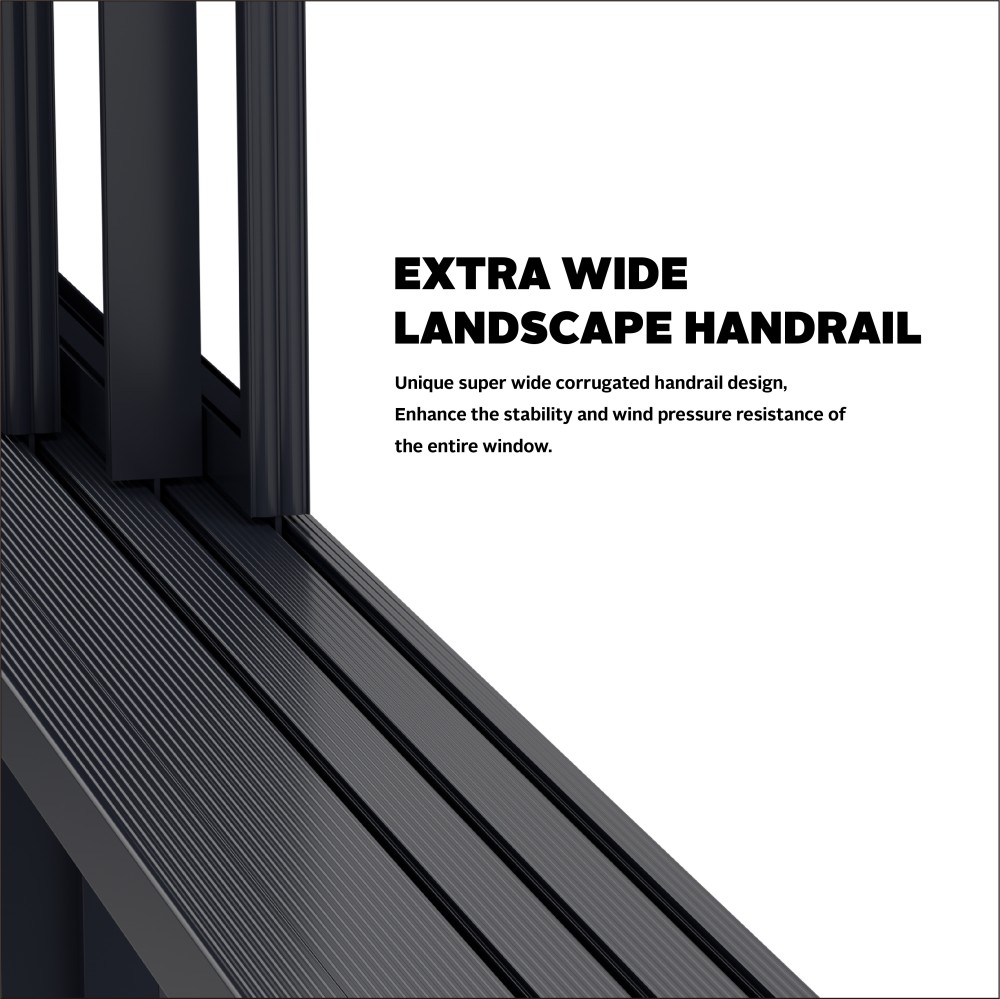

● 2. The handrail surface tube can be equipped with the photoelectric intelligent sliding system opening hardware.
