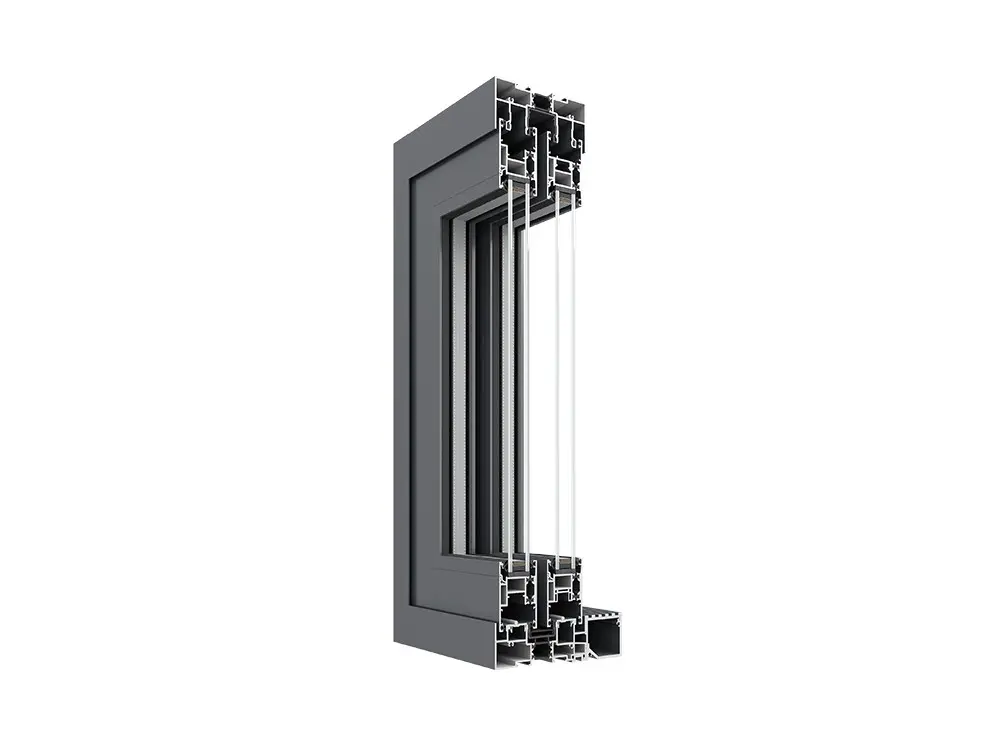

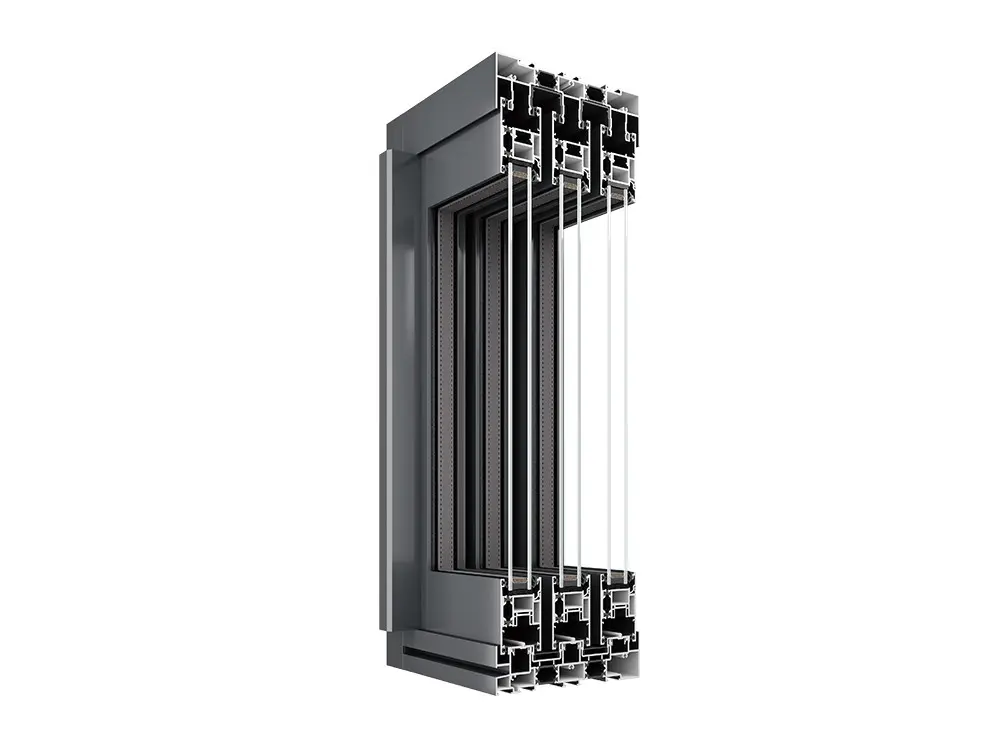

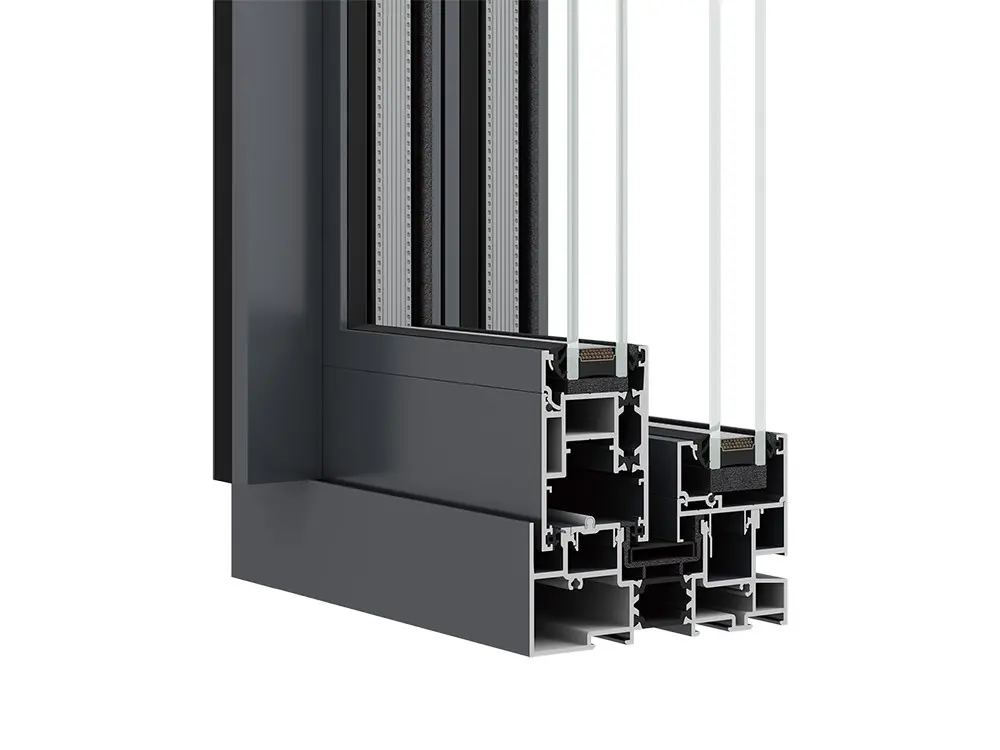

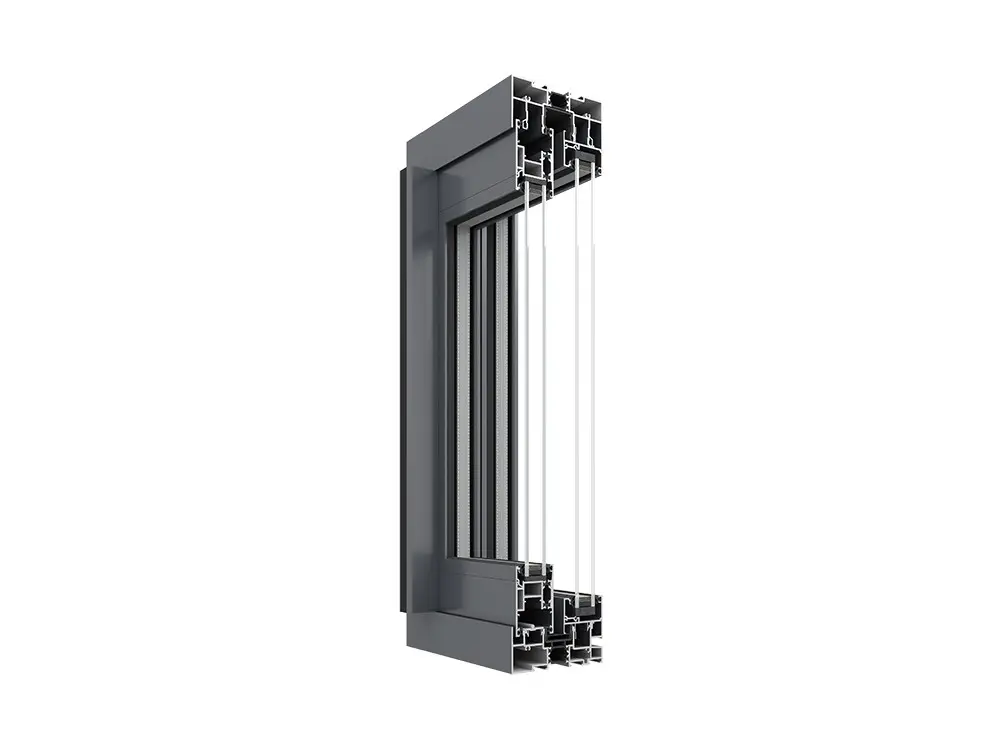

HYGS125M/189M Series Light-duty Heat Insulated Lifting Sliding Door

● This product series is a light-duty heat-insulated lifting sliding door, which is a square medium-narrow style and is built with systematic thinking.

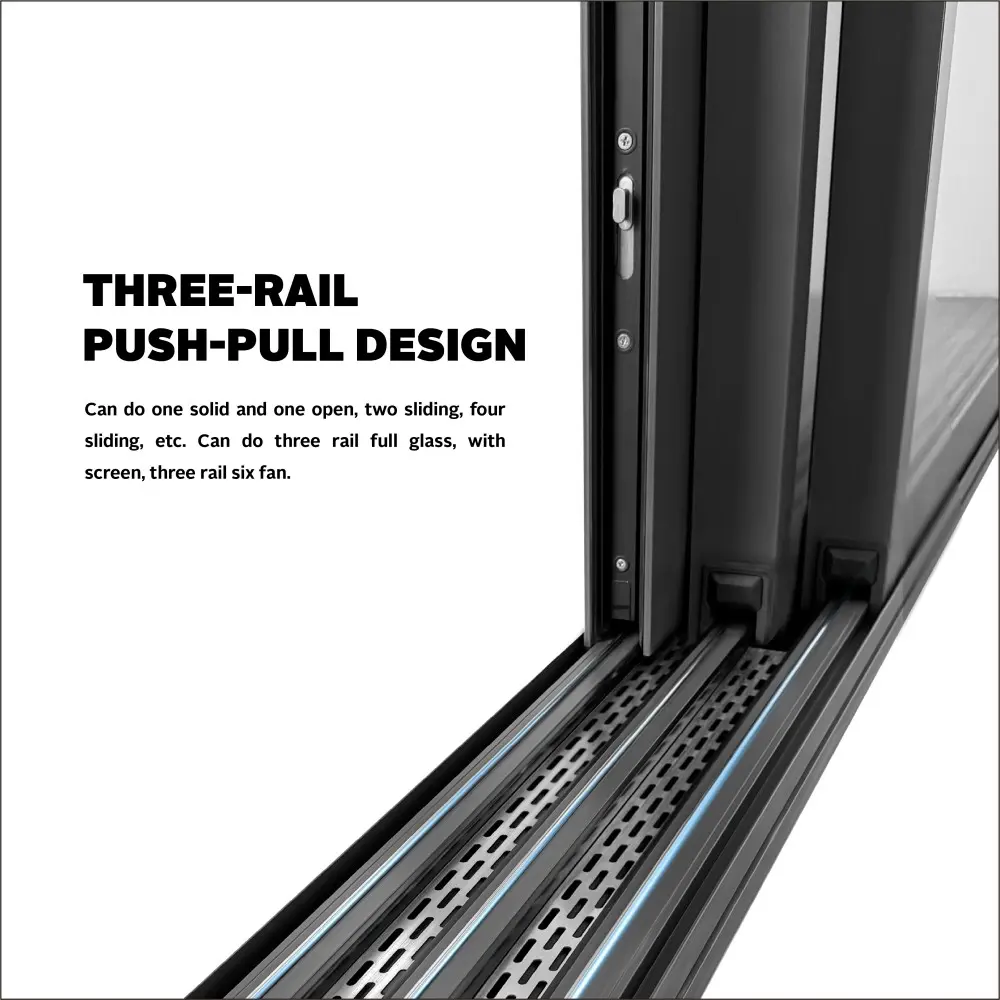

● It can be made into full-width sash, wide and narrow matching sashes, two-track two-sash, two-track four-sash.

● The outer frame adopts 90-degree splicing, all 75 sashes adopt 45-degree glue injection corner assembly process, and 75 + 42 wide and narrow matching sashes adopt 45-degree and special 90-degree connector glue injection corners assembly process to ensure corner strength.

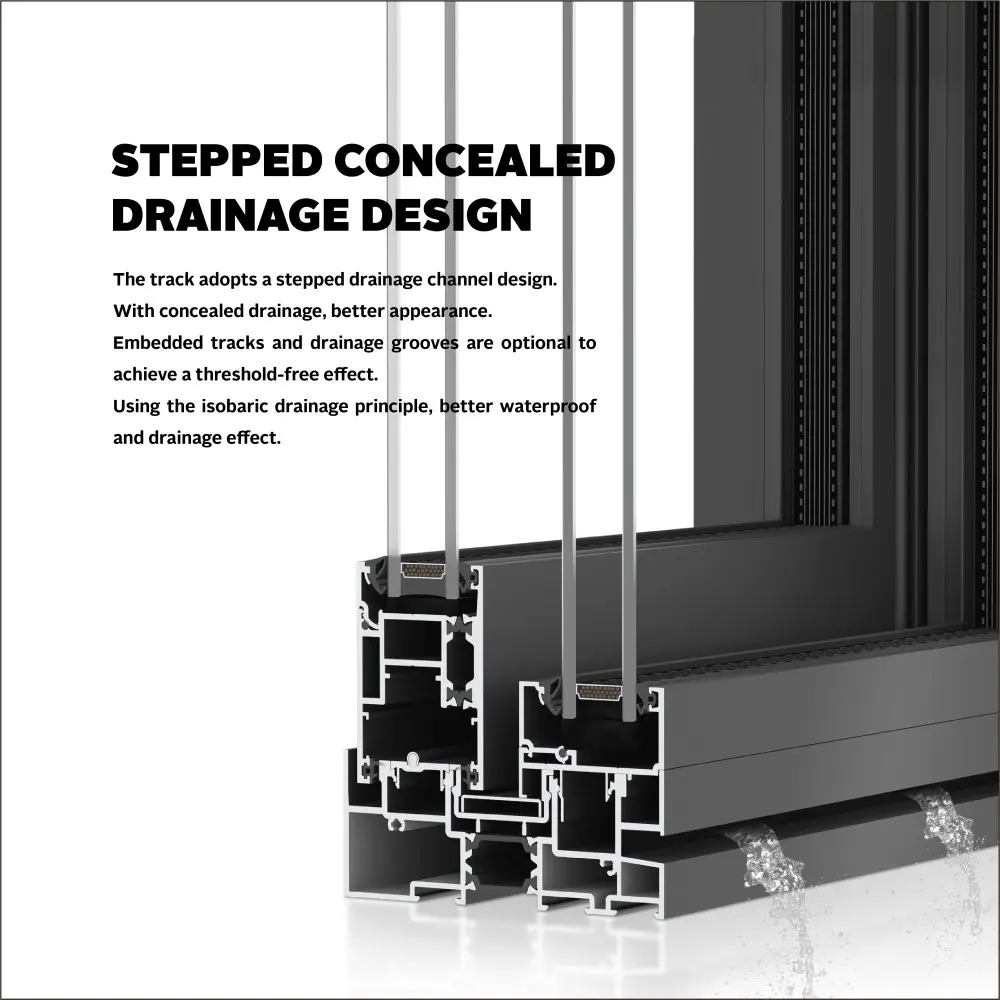

● It adopts lower track with high waterproof, which can be used as lifting sliding door or conventional sliding door. The high waterproof lower track adopts a concealed drainage structure design, which uses water pressure to drain water, has smooth drainage and beautiful appearance.

● The upper rail of this series is equipped with a guide groove with anti-sway, and the installation of a column anti-sway wheel can reduce the swing and shaking of the door sash during the sliding process.

● The door sash adopts a multi-layer strip sealing design, and an automatically rebounding windproof block is added between the two guide grooves of the upper track, and a soft rubber windproof block is added between the two guide tracks of the lower track, which blocks strong winds layer by layer, prevents insects, dust and water.

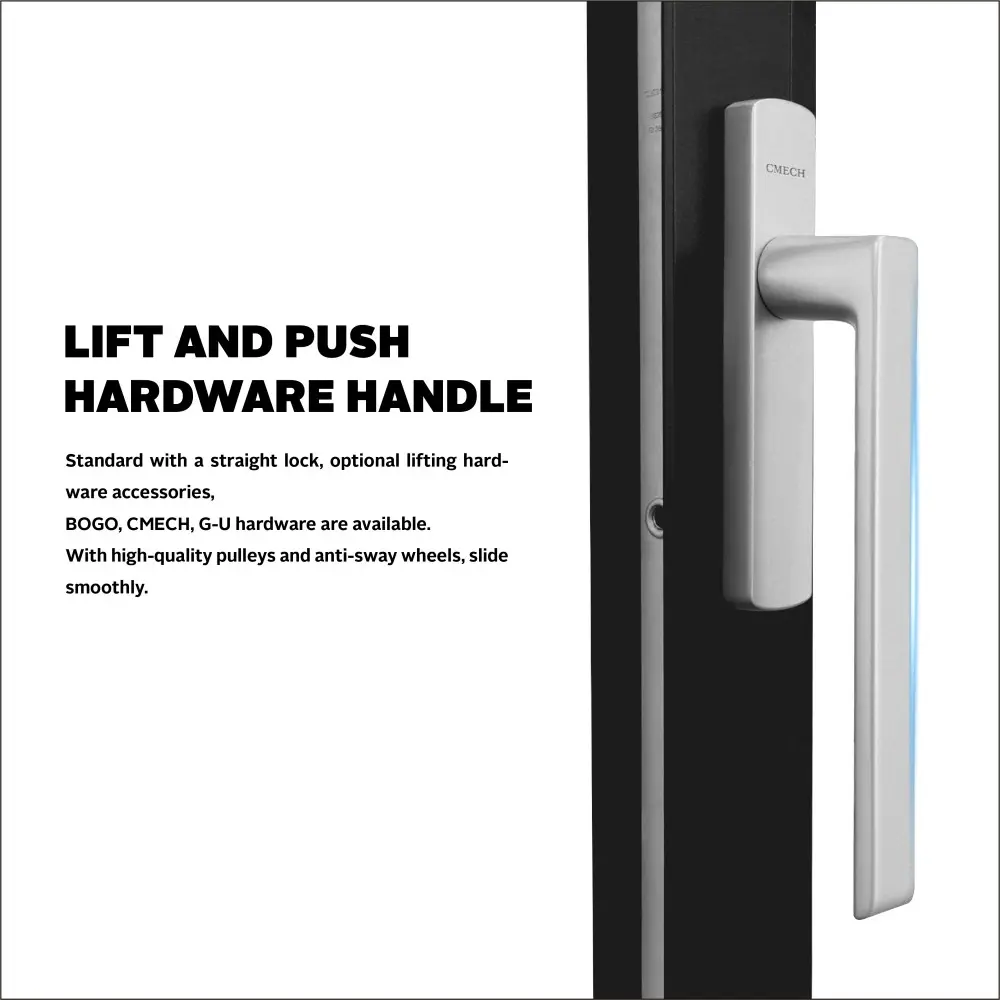

● When the glass sash is installed with lifting accessories, it can be completely sealed with EPDM strips to increase its overall sealing performance.

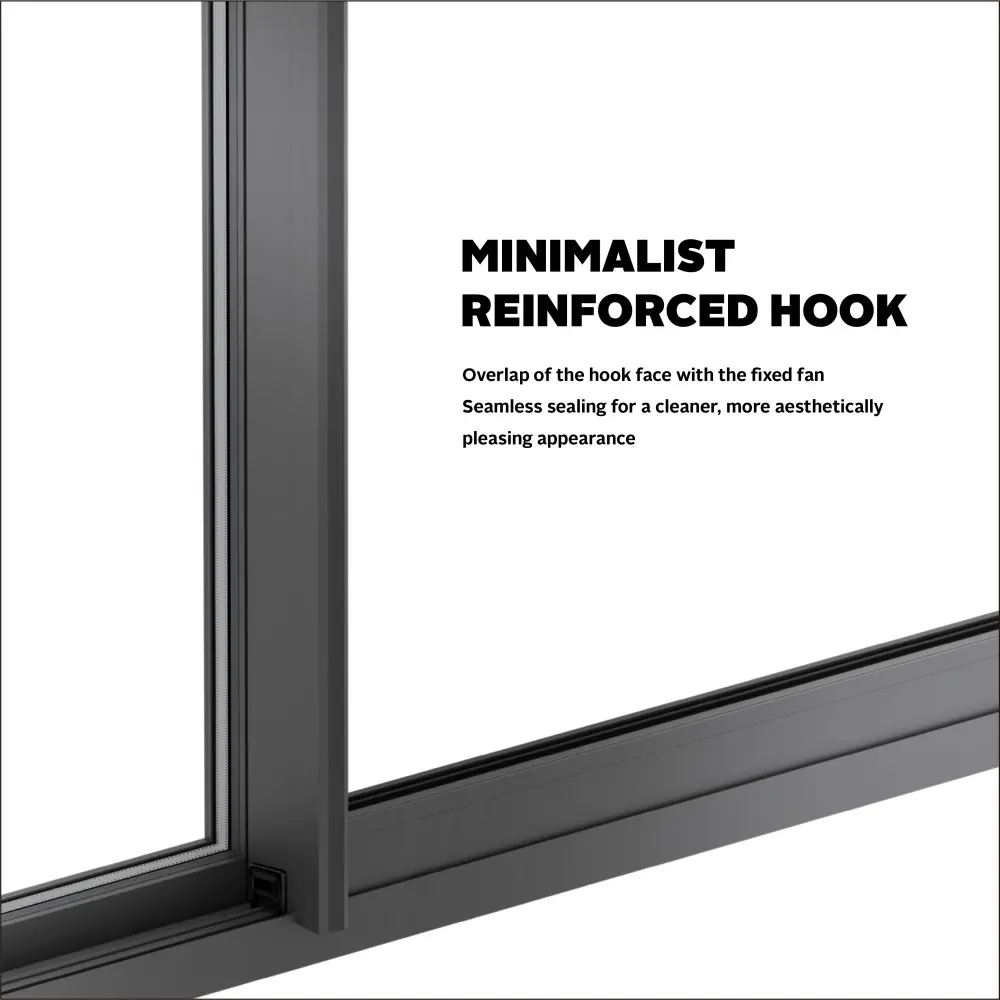

● The upper and lower hook cover sealing parts are added at the upper and lower ends of the sashes hook cover to increase its sealing performance and aesthetics.

● The glass of this series adopts a glue-free strip process (EPDM inside the glass, soft and hard co-extruded strips outside the glass, which greatly increases the overlap of the outer glass strip).
