HYGP78 Series System Window Tilt and Turn Outward Opening Casement Window

Product Features

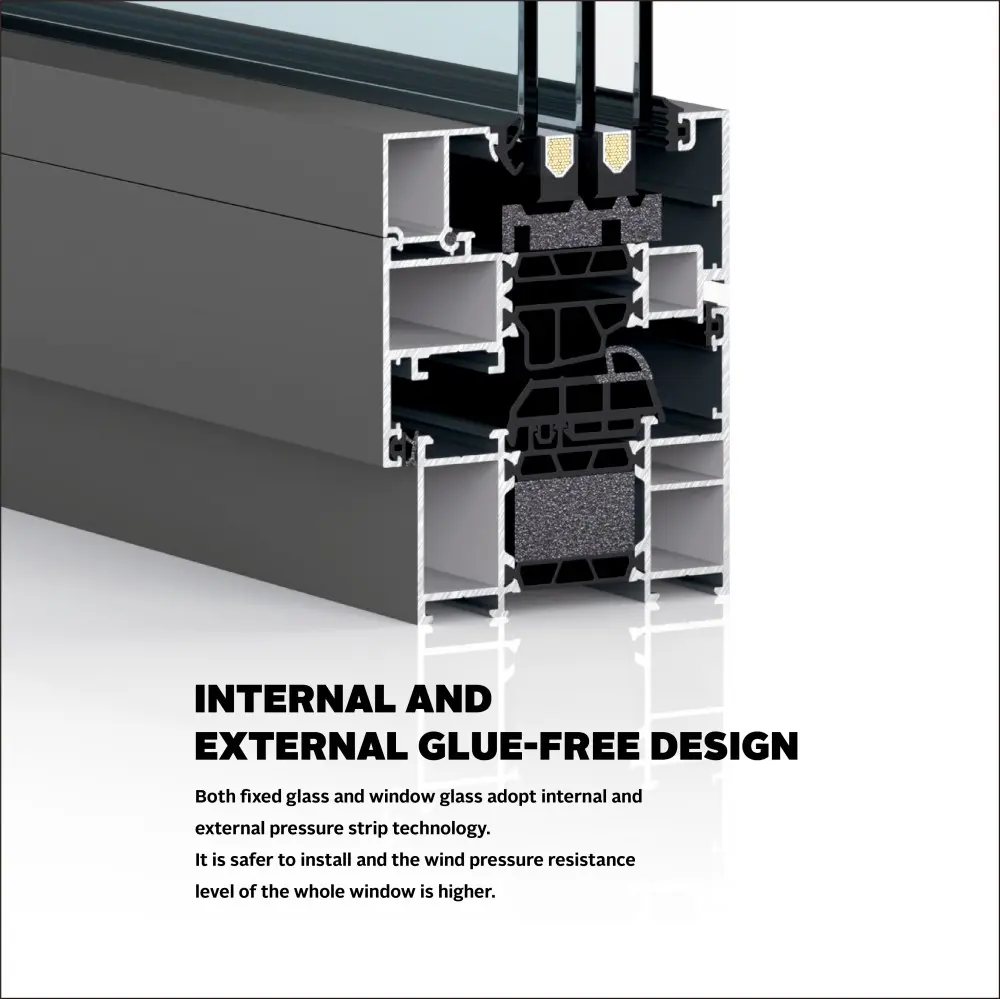

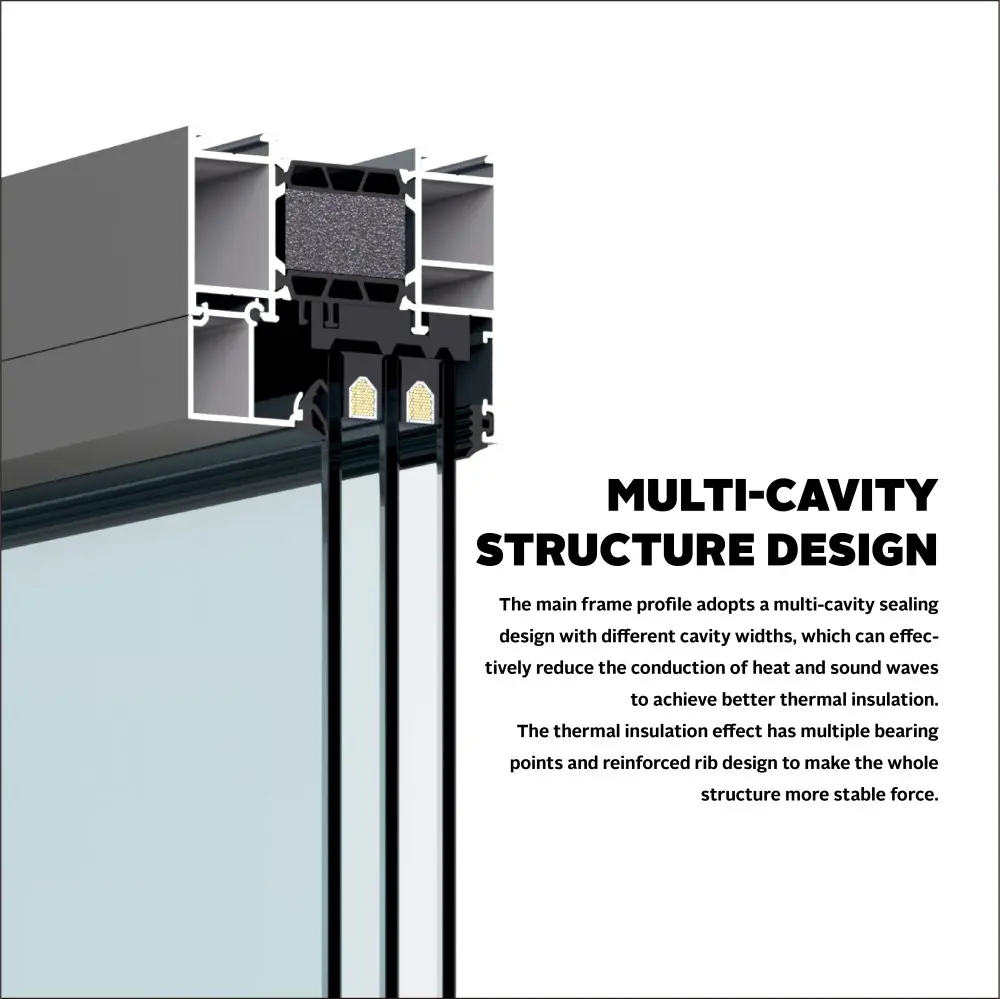

● The glass notches of this structure are designed to be glue-free, and the opening position is sealed with three-stage strips to separate the watertight cavity from the airtight cavity.

● The outer frame adopts hidden drainage design, which utilizes water pressure to drain water, with smooth drainage and beautiful appearance.

● The outer frame, conversion frame, and sash all adopt an integrated glue-injected corner code design.

● The angle-forming flat steel sheets used are all 304 stainless steel glue-injected steel sheets.

● The inner sash and the outer frame flush form: the outward sash and the outer frame are flat inside and not flat outside, while the inward sash and the outer frame are flat outside and not flat inside.

● Double inward opening sash has two methods: external pressure line and internal pressure line, and the external pressure line is more beautiful.

● Double inward opening sash small screen with magnetic strip, with stainless steel mesh and high-transparency mesh dual-use screen options.

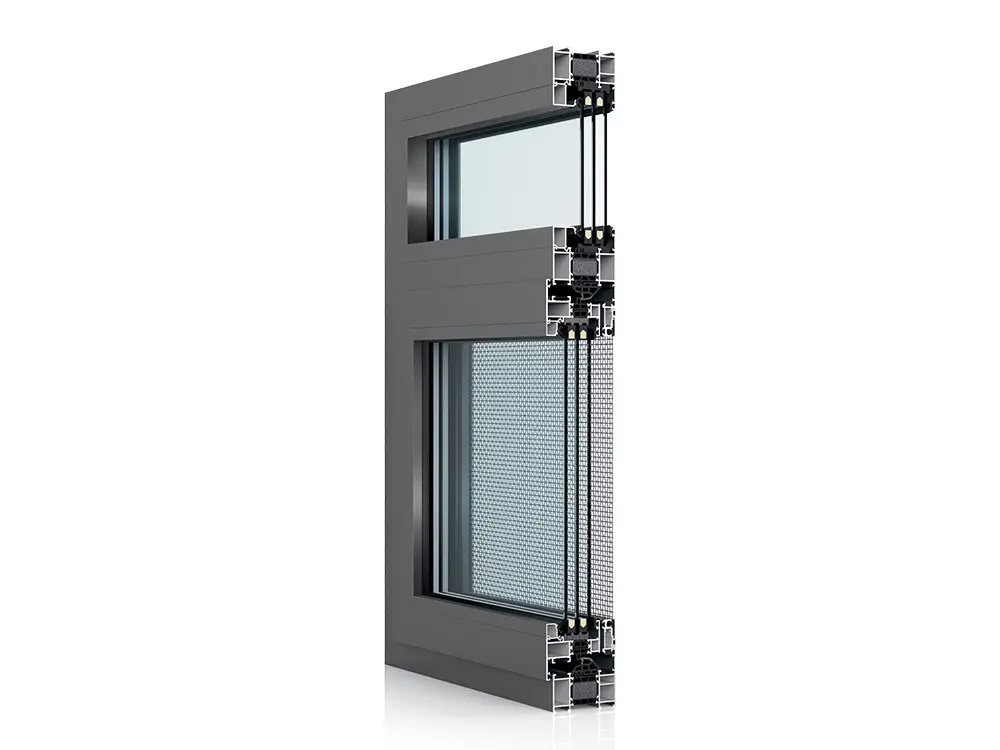

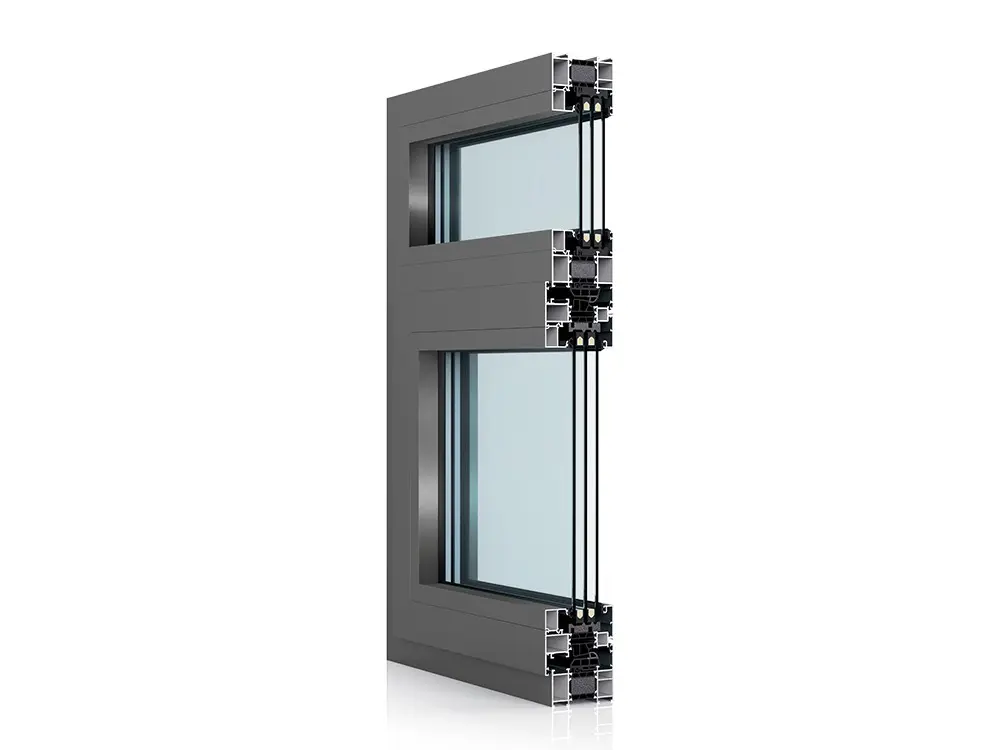

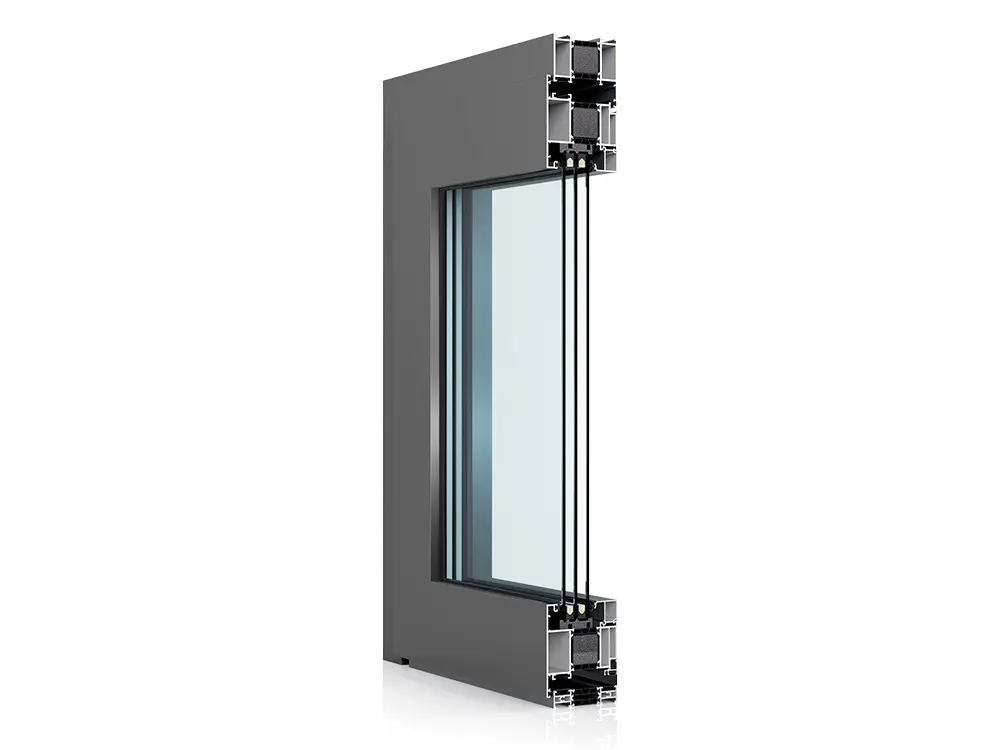

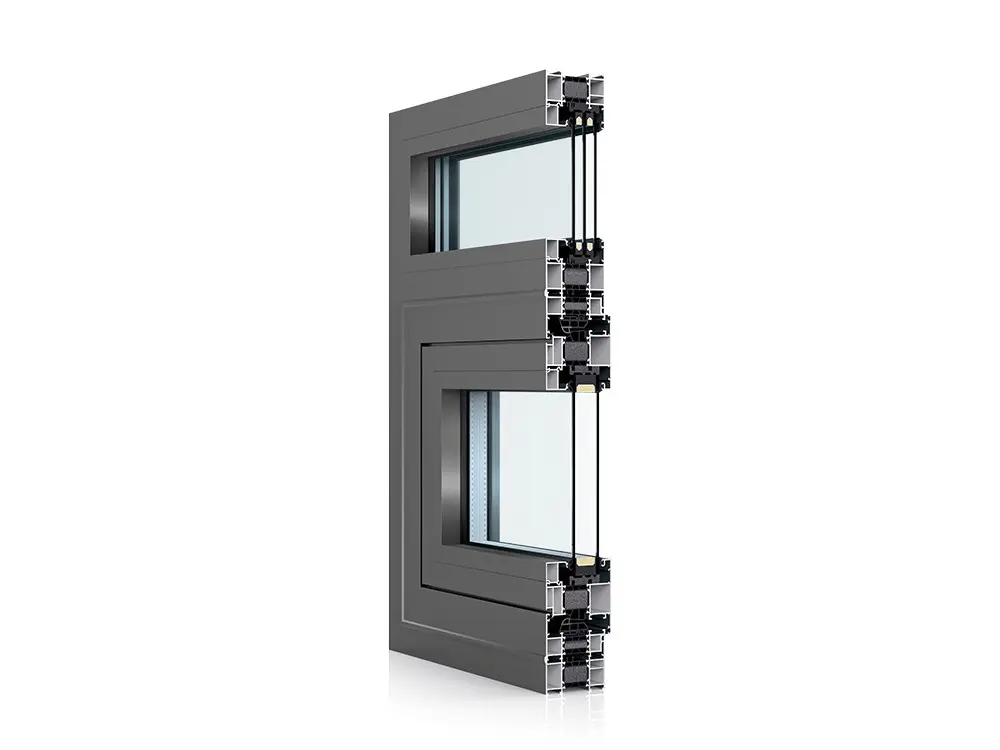

● This series can be used for outward casement windows, external top-hung windows, inward casement windows, tilt and turn windows, single outward casement doors, double outward casement doors, double inward opening windows with screens, etc. Among them, the outward opening window can use the conversion frame or not, the casement door can be selected with or without the threshold door, and the casement door can adopt the middle horizontal solution.
